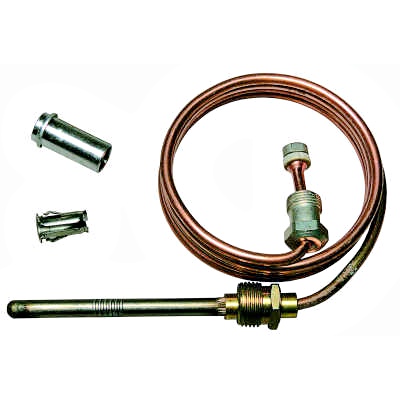

Honeywell Q390A1061 30MV Thermocouple 36" long

Honeywell Q390A1061 30MV Thermocouple 36" long
Images for general purposes only. Actual may be different than depicted.
Honeywell Q390A1061 30MV Thermocouple 36" long

Honeywell Q390A1061 30MV Thermocouple 36" long

SKU: Q390A1061
In Stock 296
Rating:
$6.66 /ea
Qty of 10 - $6.33 /ea
Qty of 20 - $5.98 /ea
0
$0.00
0
$0.00
0
The Q390A thermocouples sense the pilot flame on standing pilot gas-fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential between it and the base to generate 30 millivolts. 36 inch Thermocouple provides 30 mV output.

Features: Push-in clip, split nut, or adapter assembly available (depending on model) for easy pilot burner installation. Male nut connector for Pilotstat® safety control power units. Available in a variety of lead lengths.
Temperature Ratings Hot Junction--760 C; Cold Junction--416 C
Voltage 30 mV; Open circuit output--26 mV to 32 mV
Connection Type 11/32 32 Male Connector Nut
Resistance 0.02 ohms

Following are the Attached files for this product:

Honeywell Q390A1061 Thermocouple Datasheet
