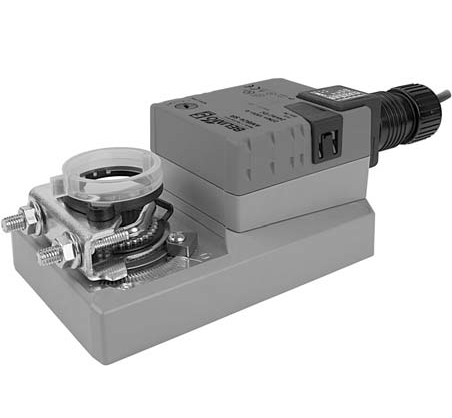

Belimo AMX120-3 100-240V 180" lbs On/Off /Float

Belimo AMX120-3 100-240V 180" lbs On/Off /Float
Images for general purposes only. Actual may be different than depicted.
Belimo AMX120-3 100-240V 180" lbs On/Off /Float

Belimo AMX120-3 100-240V 180" lbs On/Off /Float

SKU: AMX120-3
Rating:
Quantity Price Stock
2
2
$236.38 /ea
2

Buy in Bulk & Save

Quantity Price
5 - 9 $215.70 /ea
10+ $195.63 /ea
0
$0.00
0
$0.00
0
AMX120-3

The actuator is not provided with and does not require any limit switches, but is

electronically protected against overload. The anti-rotation strap supplied with the

actuator will prevent lateral movement.

The AMX series provides 95° of rotation and a visual indicator indicates position of the

actuator. When reaching the damper or actuator end position, the actuator

automatically stops. The gears can be manually disengaged with a button on the

actuator cover.

The AMX120-3 actuators use a sensorless brushless DC motor, which is controlled by

an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the

actuator’s rotation and provides a digital rotation sensing (DRS) function to prevent

damage to the actuator in a stall condition. Power consumption is reduced in holding

mode.

Add-on auxiliary switches or feedback potentiometers are easily fastened directly onto

the actuator body for signaling and switching functions.
