Belimo ADS-100 Analog-Digital Switch

Belimo ADS-100 Analog-Digital Switch

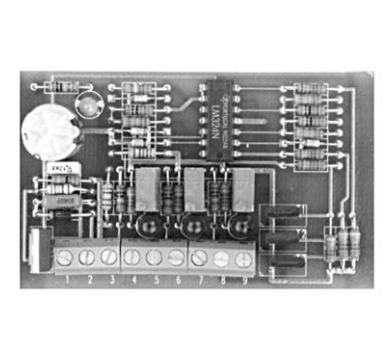

Images for general purposes only. Actual may be different than depicted.
Belimo ADS-100 Analog-Digital Switch

Belimo ADS-100 Analog-Digital Switch

SKU: ADS-100
Usually ships 2-3 Weeks
Rating:
$126.00 /ea
0
$0.00
0
$0.00
0

Application To control reheat coils and/or a fan stage in a fan-powered terminal unit.

The ADS-100 is controlled by a 2 to 10 VDC reheat output of a temperature controller. (TRS-M) Operation The ADS-100 is designed to switch up to three independent stages of reheat on and off, according to a 2 to 10 VDC signal. The three output stages are furnished with a triac output. Each stage can be adjusted

independently from each other over the 0 to 2.4° F throttling range of the TRS-M temperature controller. The ADS-100 is shipped pre-adjusted, as shown in the following table. (Based on differential from setpoint) 1st. stage 2nd. stage 3rd. stage Switch ON -0.45°F -1.35°F -2.25°F Switch OFF -0.15°F -1.05°F -1.95°F Switch ON 2.8V 5.8V 8.8V Switch OFF 0.4V 0.2V 0.4V If desired, each stage may be field readjusted for special requirements. Three red LED indicators are provided to verify when the stages are energized.
